uBITX (HF Transceiver for HAM) arrives and Assemble - (Assemble uBITX)

UBITX ordered a week ago arrived via DHL.
UBITX is simple HF Transceiver for Amatuer radio, but it have all mode and all band functions.


The uBITX main board and parts have been safely contained in plastic box.

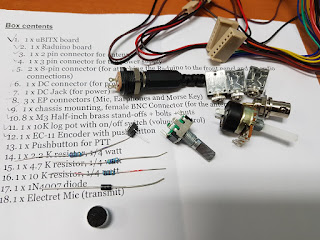

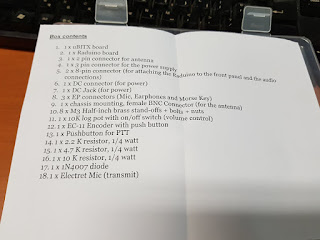

Parts List




All parts were shipped correctly.



uBITX is pre-assembled with most parts as SMD.



Make the power Connect.

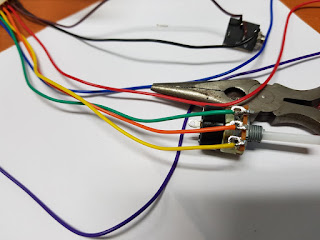

Connect the encoder to the cable.


Connect the CW Key Connector (Straight) to the cable. If you use CW Paddle, use a different resistor value.






pull-up by connecting the resistance value to the + line as shown below.








I finally connected most of the small parts.

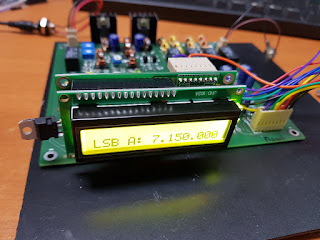

Connect LCD and supply power.





It works perfectly with parts connection for about 30 minutes ~ 1 hour.




Comments

  1. Was soldering the cables all that was needed?

    ReplyDelete
    Replies
    1. The radio is all soldered. All we have to do is cable connections. (just above picturs)

      Delete
    2. It's ice to see that is basic soldering ,and it's all with connectors.
      If I mess up I can find them and replace them. And not damage the board.
      My pixie is corroded,I don't want to do the same with an expensive board.

      Delete
    3. I also made a lot of QRP transceiver including pixie.
      It only has the most basic functions of an HF All-Band radio.

      Now we can find the joy of modifying it. perhap it's uBITX Conecpt...

      Delete
    4. It's made to be tinkered and hacked ,but for lots of people it's like baofeng the most economical radio out there,with the biggest price/performance radio.

      Delete
